My Jeep broke down on me and another Jeep had to come out and tow. Fortunately, the Jeep in front of me that was towing me hit an anti-tank mine. A lot of sand in my face because when the Jeep got blown up it was so close together that it bumped back into ours and knocked us forward. And we come up out the over the dash cuz we have our windshields down.

 We don’t have windshields up on them. We have them down and the blast just sand and stuff blasted us and then the ringing of the ears. It was a horrifically loud. Between 1965 and 1973, American soldiers in Vietnam came up with what seemed like a clever solution to one of their deadliest problems. Buried mines were killing them by the thousands.

So, they started lining the floors of their Jeeps with sandbags. The logic was simple. Sand stops bullets. It should stop blast fragments, too, right? Except it didn’t work. And in many cases, those sandbags didn’t just fail to protect soldiers. They made the explosions more deadly. The strangest part, the military knew this.

And 30 years later, American soldiers in Iraq were doing the exact same thing. This is the story of a myth that cost lives and the institutional failure that let it happen twice. To understand why this myth was so dangerous, you first need to understand the vehicle at the center of it. The M151 MUT entered service in 1959 as a replacement for the Korean War era Jeep.

Ford designed it and over 100,000 were built through 1982. It became the iconic American military vehicle of the Vietnam War. But here is what soldiers weren’t told when they climbed into one. The M151 [music] weighed just 2,400 lb. Its engine produced only [music] 71 horsepower. And its official off-road payload capacity was 500 lb.

Most critically, it used something called semi-monocoque unibody construction. Unlike the older Jeeps, which had [music] a separate steel frame bolted to the body, the M151’s floor was just thin automotive sheet steel. There was nothing substantial between the road surface >> [music] >> and the soldier’s feet.

The vehicle had another problem that compounded everything. Its rear suspension used a swing [music] axle design that caused the wheels to tuck under during hard cornering. This made the M151 prone to sudden catastrophic rollovers. A 1969 report from Aberdeen Proving Ground confirmed this instability. But both the Army and Ford rejected the proposed fixes.

The Department of Defense eventually deemed all M151 variants unsafe for public highway use and banned civilian sales entirely. They would sell the engines and parts, but the complete vehicles had to be destroyed. So, this was the vehicle American soldiers were driving into a war where mines had become the enemy’s weapon of choice.

A lightweight unarmored truck with a thin steel floor and a known tendency to flip over. And when those soldiers tried [music] to protect themselves, they reached for the most available material they could find. Vietnam has been called the war of mines and booby traps >> [music] >> by the US Army itself. And the statistics explain why.

Between 1965 and 1970, mines and booby traps caused between [music] 11 and 33% of all American casualties, depending on the unit and time period. In some divisions, >> [music] >> the numbers were far worse. The 1st Marine Division reported that 57% of all their casualties in the second half of 1968 came from mines.

One Marine Corps report from early 1965 put the figure at 65 to 75%. The annual toll kept climbing. And between November 1967 and March 1970, mines accounted for 73% of all vehicle losses. That included 1,342 M113 armored personnel carriers destroyed. Perhaps the most bitter irony of all, a 1969 assessment found that 90% of all mine and booby trap components were of American origin.

Vietnamese forces were scavenging US ordinance and turning it against American soldiers. In Phuoc Tuy Province, enemy fighters lifted 10,000 of 30,000 M16 [music] anti-personnel mines from an Australian-laid minefield and used them against the Australians. The Deputy Commanding General of MACV admitted in a July 1969 letter to the Army’s Chief of Research and Development, “Our experience in Vietnam with mines and booby traps has not been pleasant.

The hardware available to detect mines or booby traps [music] has been of limited value.” The enemy was using American explosives. Detection equipment barely worked and soldiers were driving thin-skinned vehicles down roads they knew were mined. They had to do something. So, they improvised. The practice of lining vehicle floors with sandbags for mine protection didn’t start in Vietnam.

Crews of World War II armored cars and Jeeps had done it. The technique migrated forward through institutional memory and what seemed like common sense. Sand demonstrably stops bullets. About 2 ft of packed sand will halt a .50 caliber round at muzzle velocity. [music] The logical leap from sand stops bullets to sand stops blast felt intuitive to soldiers facing an invisible enemy beneath every road.

In Vietnam, the practice became nearly universal across light vehicles. M151 MUTs, M113 armored personnel carriers, M35 cargo trucks. If it rolled on Vietnamese roads, soldiers piled sandbags into it. Sergeant Dennis Bellcastro, who served with the 54th Transportation Battalion, later described the standard setup.

The truck crew’s only protection comes from piling sandbags on the floorboards against a mine blast. Lieutenant Burt Landau of the 9th Infantry Division wrote in his memoir that “Sandbags worked pretty darn well against mines when you lined the floor of your Jeep with sandbags.” [music] Warrant Officer Bernard Bournos’ famous war wagon, >> [music] >> an M151 carrying an M134 minigun, relied on sandbags because actual armor plates would have made the vehicle too heavy to function.

The military’s official stance was ambiguous tolerance. No directive from Military Assistance Command Vietnam was found either mandating or prohibiting the practice. Unit-level mine warfare schools likely reinforced it alongside other field expedient measures. But here is what those soldiers didn’t know and what the physics made inevitable.

Sandbags are excellent at stopping bullets. They are nearly useless against mine blasts. And in several measurable ways, they made the problem worse. To understand [music] why the sandbag solution failed, you need to understand the physics of a mine blast. Stopping a bullet requires dense material to absorb a projectile’s limited kinetic energy through friction and deformation.

Sand excels at this. But stopping a mine blast, that is a completely different engineering problem. When a buried mine detonates, it creates a hollow inverse cone of superheated gases surrounded by soil moving at 800 to 2,000 mph. The pressure at detonation reaches 1.4 to 3 million pounds per square inch at temperatures between 2,000 and 6,000°C.

This pressure wave acts across the entire vehicle floor simultaneously. A flat floor traps these detonation [music] products, allowing catastrophic energy transfer that ruptures the floor pan and exposes occupants to lethal fragments and superheated gases. The M151’s thin sheet steel floor was essentially the worst possible geometry for this threat.

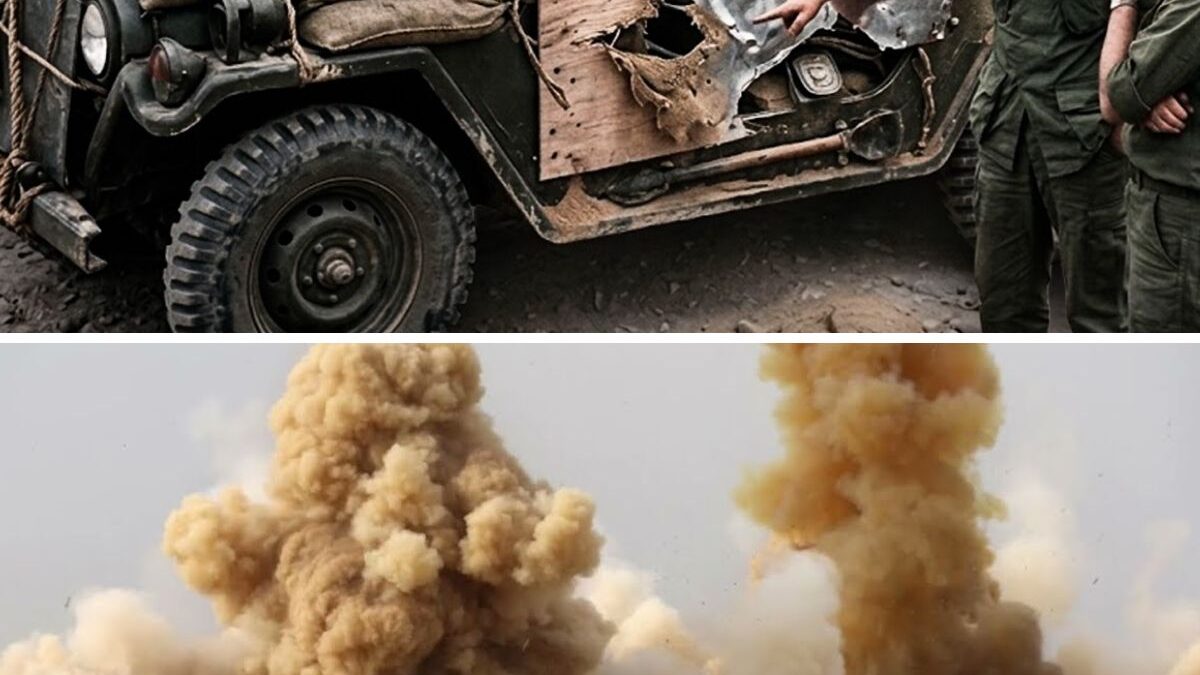

And sandbags [music] made it worse through four specific mechanisms. First, the secondary projectile effect. When a mine blast ruptured the M151’s thin floor, everything sitting on that floor accelerated violently upward. Sandbag fabric tore instantly and sand dispersed into a cloud of high-velocity >> [music] >> particles.

 Soldiers were struck not only by the original blast products, but by what was supposed to protect them. Second, reduced standoff distance. Standoff, the gap between [music] an explosion and the crew compartment, is the single most important variable in mine blast survivability. A standard filled sandbag weighs 30 to 50 lb.

 Soldiers routinely loaded dozens onto an M151 rated for only 500 lb of off-road payload. 20 sandbags at 40 lb each [music] added 800 lb, 160% of rated capacity. This compressed the suspension, physically lowering the vehicle closer to the ground and reducing the already minimal 9.4 in ground clearance. Third, chronic [music] overloading fatigued the monocoque body structure.

 A weakened, stress-fractured floor ruptures more [music] easily under blast loading. Fourth, the additional weight worsened the M151’s already dangerous handling characteristics, increasing rollover risk and slowing the vehicle’s ability to accelerate out of kill zones during ambushes. Sandbags accomplished the exact opposite of what modern mine resistant vehicles achieve through raised chassis and V-hull designs.

Here is where the story becomes truly frustrating. The actual engineering solution to vehicle mine protection was developed not by the United States, but by Rhodesia during its Bush War from 1972 to 1980. After initially trying sandbags covered with conveyor belt rubber and finding they interfered [music] with driving controls, caused accidents, wore down quickly, and overloaded vehicles, Rhodesian engineer Ernest Konschel designed the Leopard in 1974.

It was the first purpose-built V-hull mine protected vehicle. The principle was revolutionary in its simplicity. Instead of trying to absorb blast energy, deflected away from occupants. South Africa refined the concept [music] into the Caspir, which could withstand a triple anti-tank mine blast under the wheels.

That is 21 kg of TNT. Across 676 mine incidents carrying 4,874 passengers [music] in V-hull vehicles, the Rhodesians achieved a fatality rate of just 0.8%. Compare that to the M151 MUTT, where a single mine strike was often fatal to the entire crew. The United States documented its Vietnam Mine Warfare lessons extensively.

Detailed studies were published. After-action reports were filed. None of it translated into vehicle design doctrine. When American soldiers arrived in Iraq in 2003 driving flat-bottomed Humvees, they did exactly what their fathers and grandfathers had done. They lined the floors with sandbags. In 2004, Lieutenant Colonel David Hubner of the First Infantry Division formally ordered all unarmored vehicles >> [music] >> reinforced with sandbags.

Army Chief of Staff General Peter Schoomaker was asked whether a sandbag inside a Humvee was adequate to protect a soldier. His answer, “It’s not.” It took until May 2007, 4 years into the Iraq War and nearly four decades after Vietnam, for Secretary of Defense Robert Gates to declare the MRAP, the mine resistant ambush protected [music] vehicle, the Pentagon’s highest acquisition priority.

The resulting program delivered approximately 28,000 vehicles [music] at a cost of 22.7 billion dollars. The design was based directly on South African concepts >> [music] >> that trace back to Rhodesia. A soldier in an MRAP was four to five times less likely to be killed than in an up-armored Humvee.

 The V-hull principle that Rhodesia had proven in the 1970s finally reached American troops, but only after thousands of additional casualties in two wars separated by three decades. The soldiers who piled sandbags into their M151s weren’t foolish. They were rational people working with available materials against an existential threat in a context where their leadership had no better answer.

The failure was not at the squad level. It was institutional. A military that could not retain lessons across conflicts, could not translate field experience into vehicle design requirements, and could not adopt foreign innovations even when they demonstrably worked. The pages of the Vietnam War were etched with painful lessons about mines and vehicle protection.

Those pages were filed away and forgotten until the same lessons had to be written again in blood in Iraq and Afghanistan. The sandbag myth wasn’t a failure of common soldiers trying to survive. It was a failure of institutions to learn, to remember, and to act on what they already knew. If you found this history valuable, subscribe for more stories about the Vietnam War and the lessons that shaped modern warfare.
